chucklehead

Some pics during spark plug and COP change

Recommended Posts

2004 Murcielago E-gear coupe

Had check engine light( emissions and misfire)

hesitation around 4000 RPM on WOT

decided to change spark plugs and COP

thx to all the help on LamboPower

multiple posts

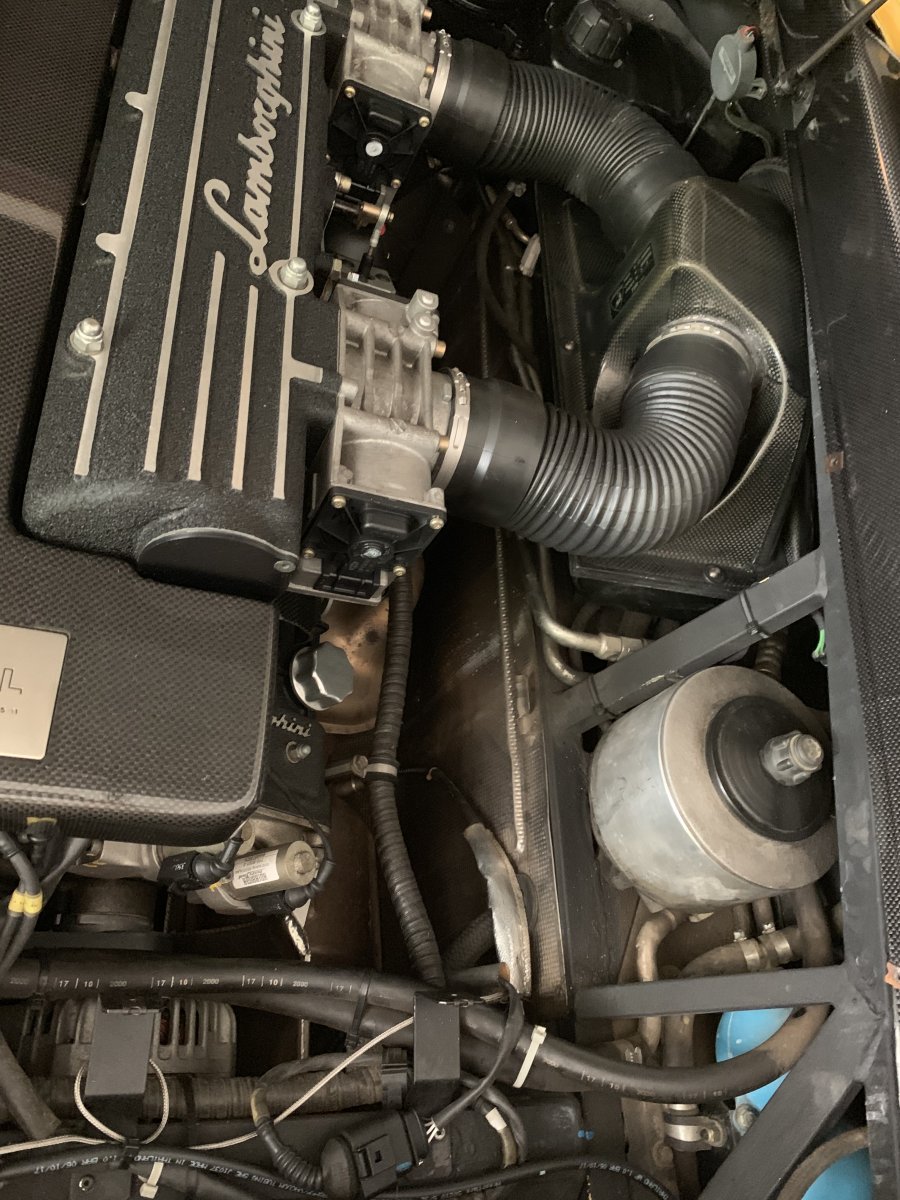

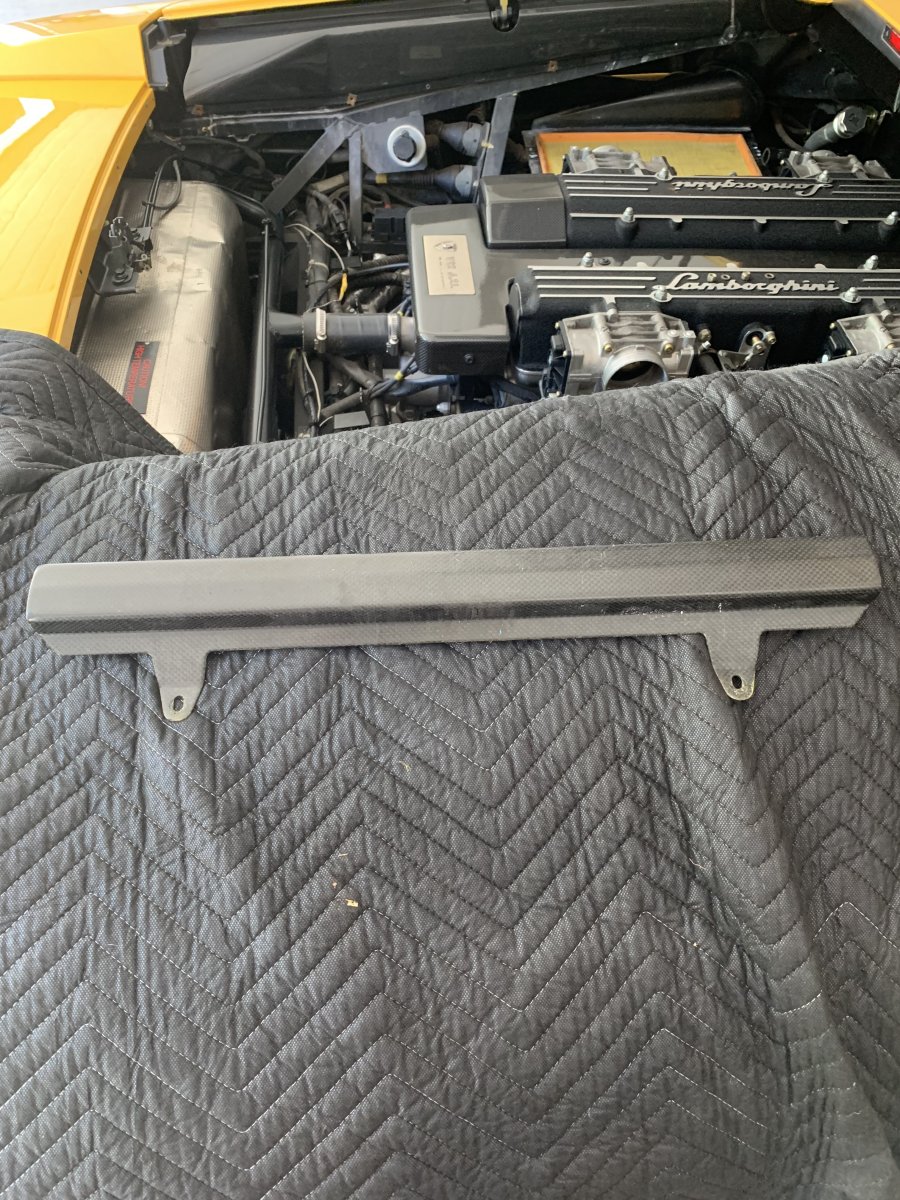

removed Exhaust Grate

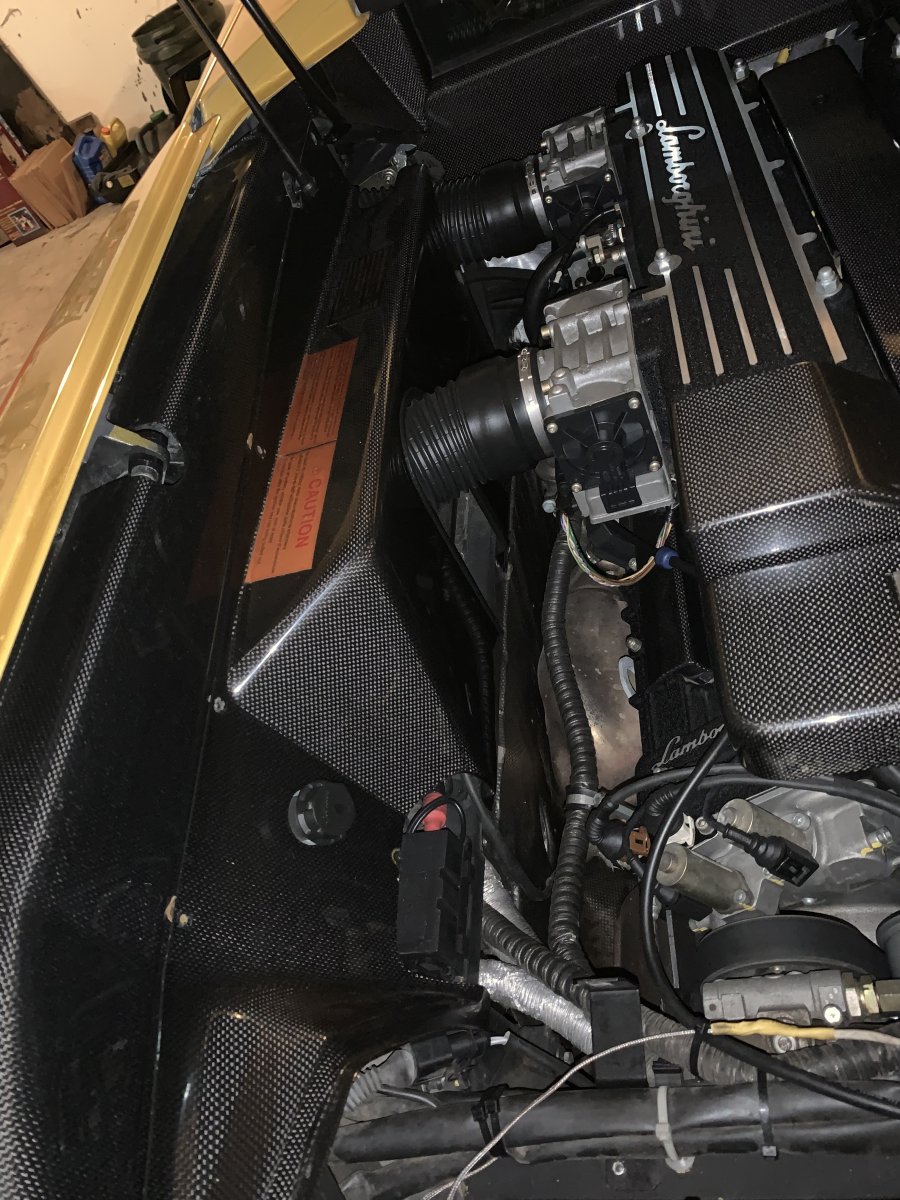

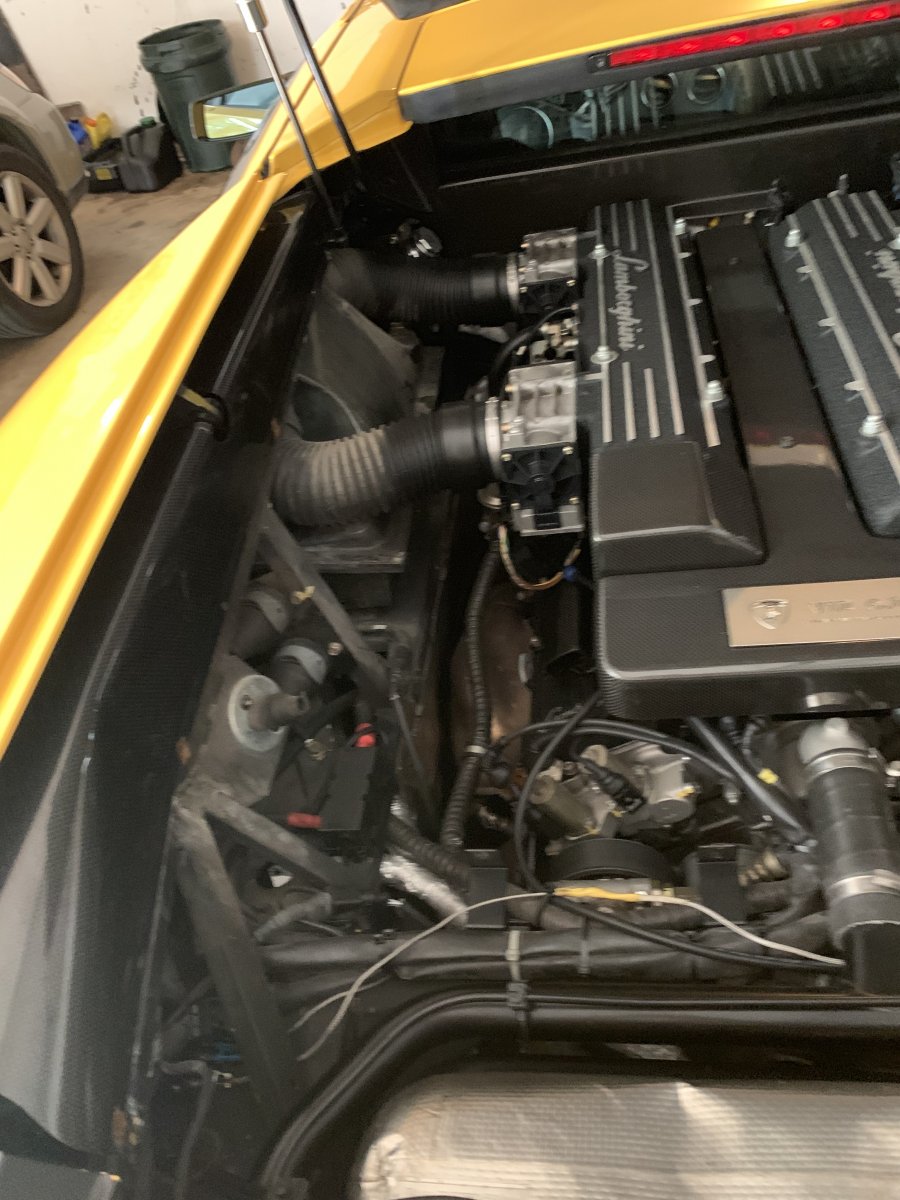

removed side engine panels




Share this post


Link to post
Share on other sites

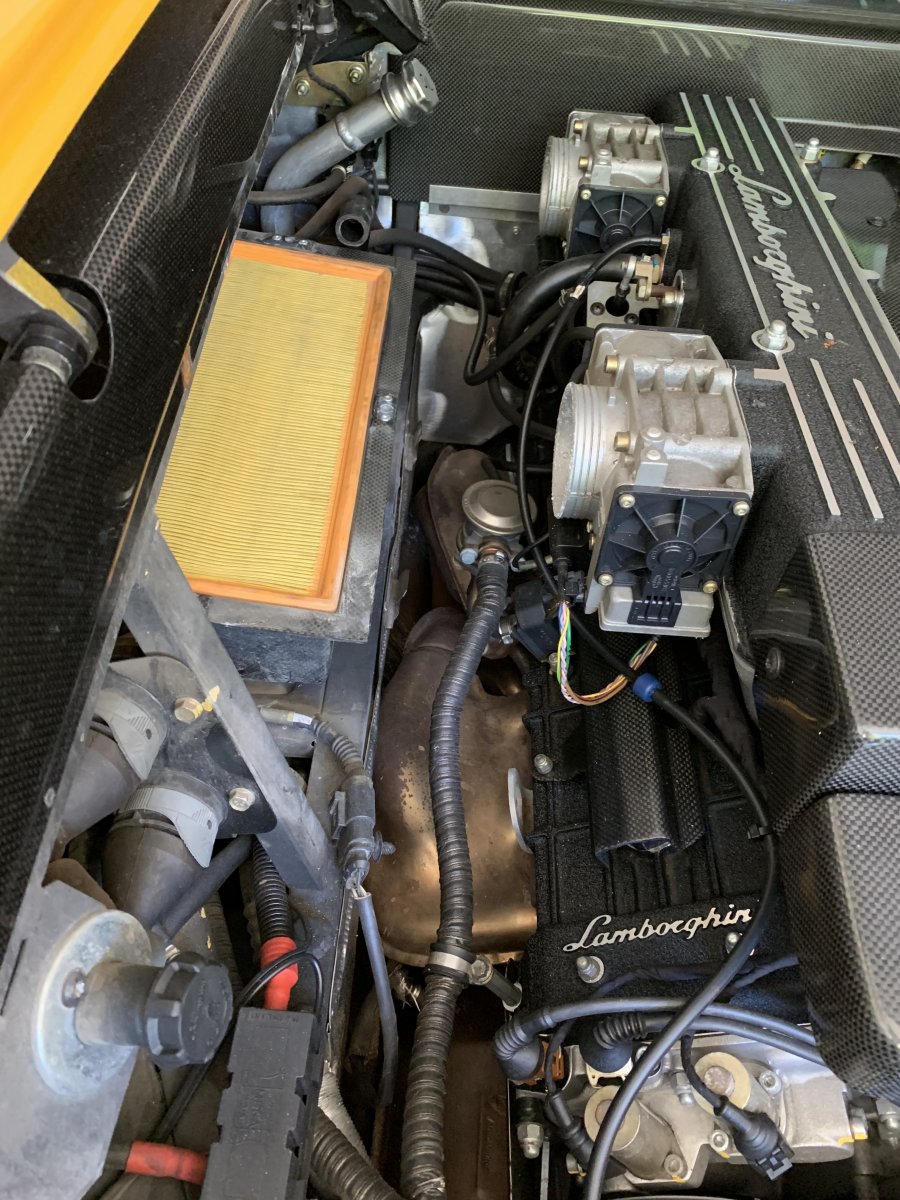

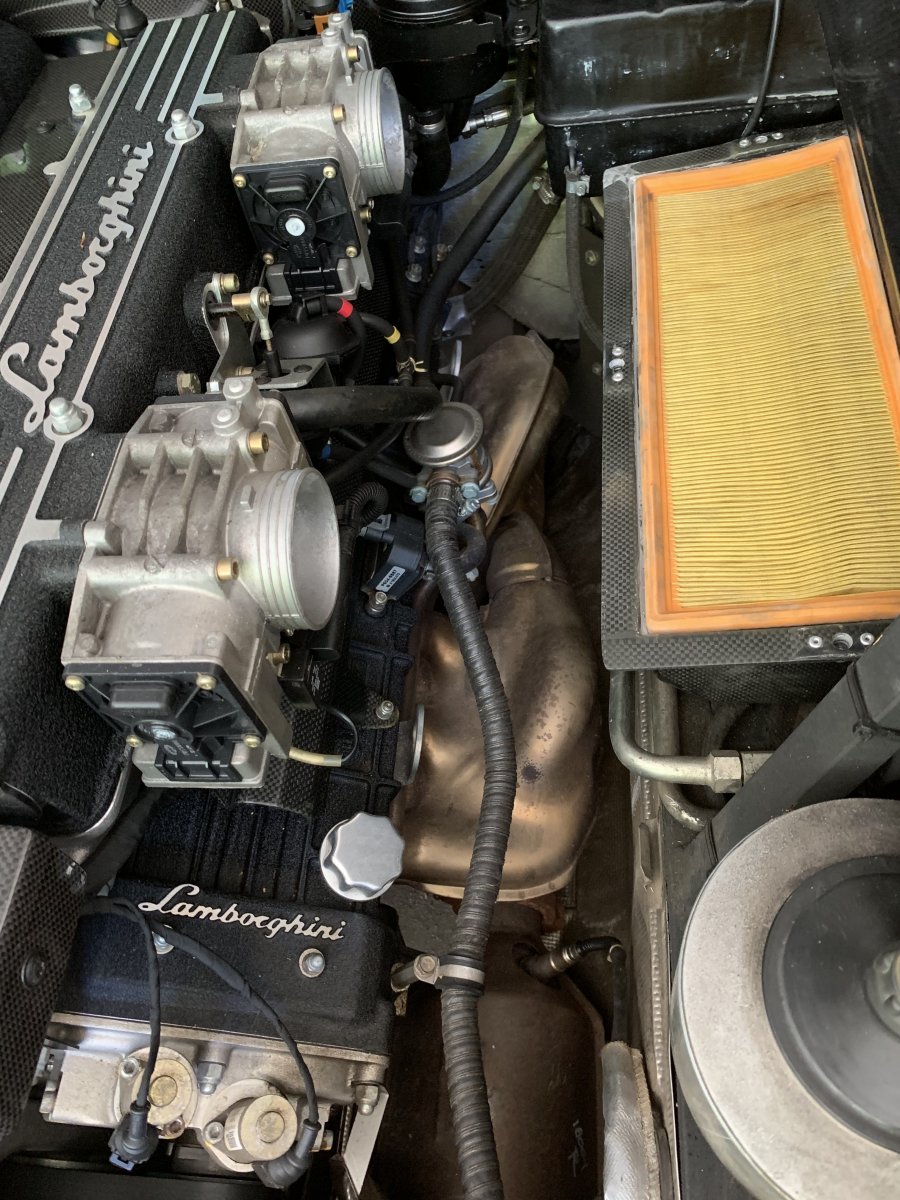

Still needed more room, removed air filter cover and hoses

there is carbon fiber cover over the COP, just 2 nuts. Have to wiggle to remove as many hoses over top. One wire with socket runs over this near 4-5 plug and 9-10 plug.




Share this post


Link to post
Share on other sites

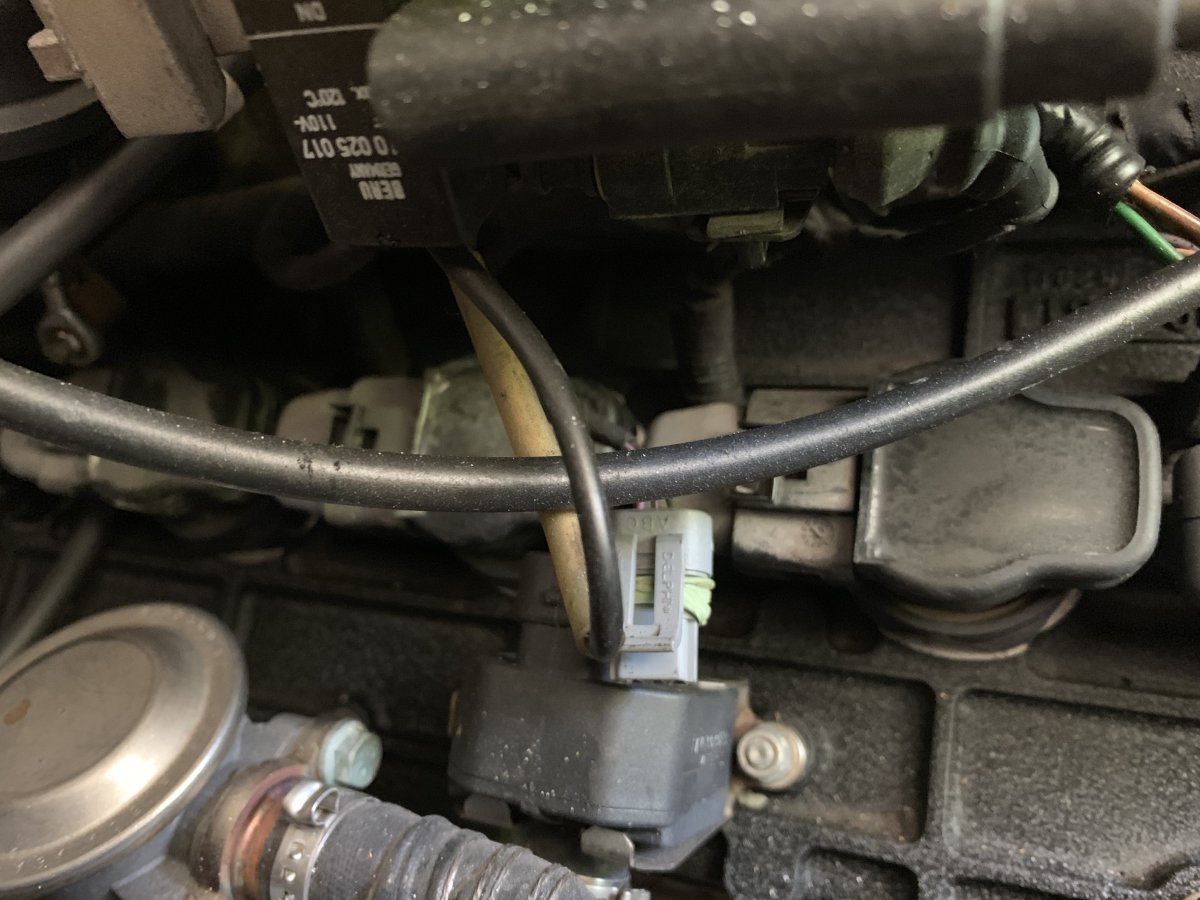

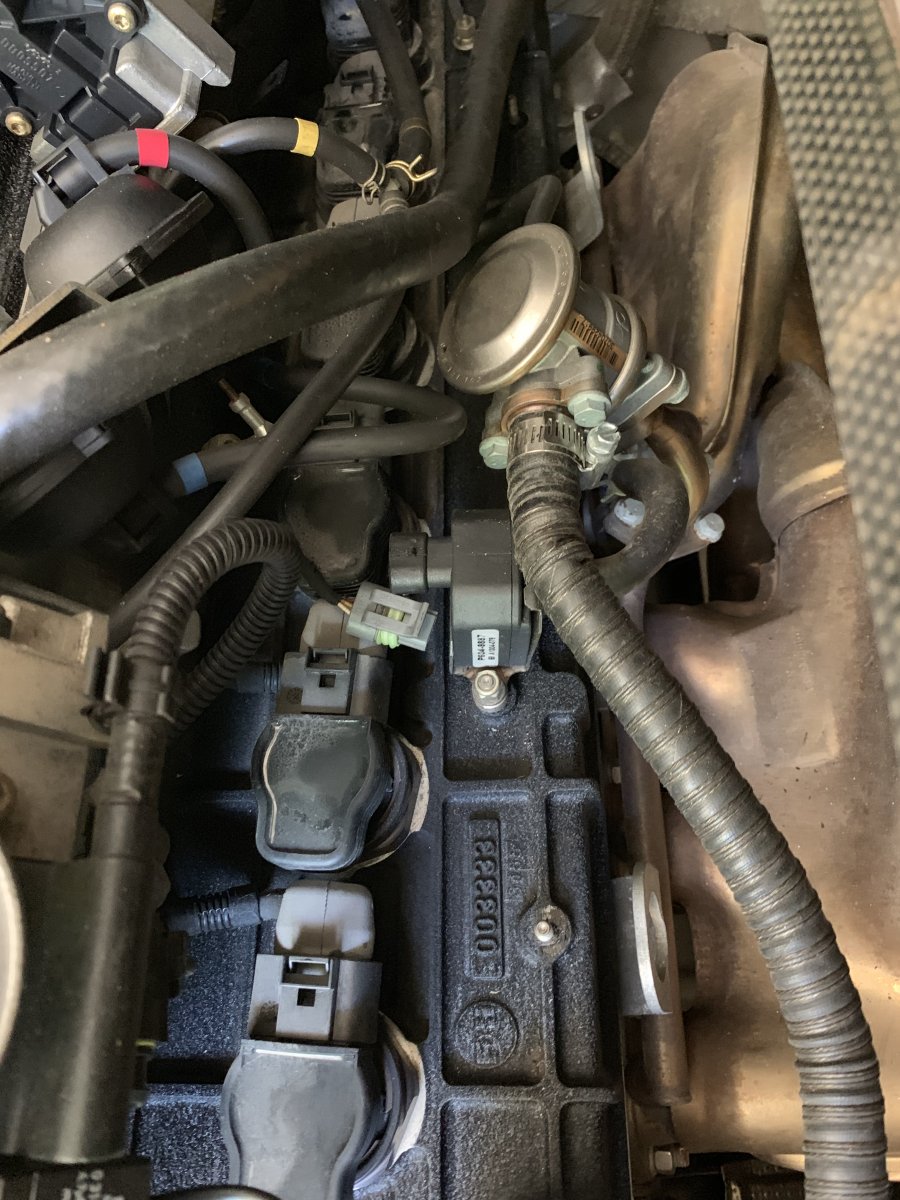

The COP are pretty easy to pull up. Used small screwdriver on tab to remove the connectors from COP.

sparkplugs just need an extension to reach.

simple but lots of hoses and wires in the way. Just take your time and don’t break anything.

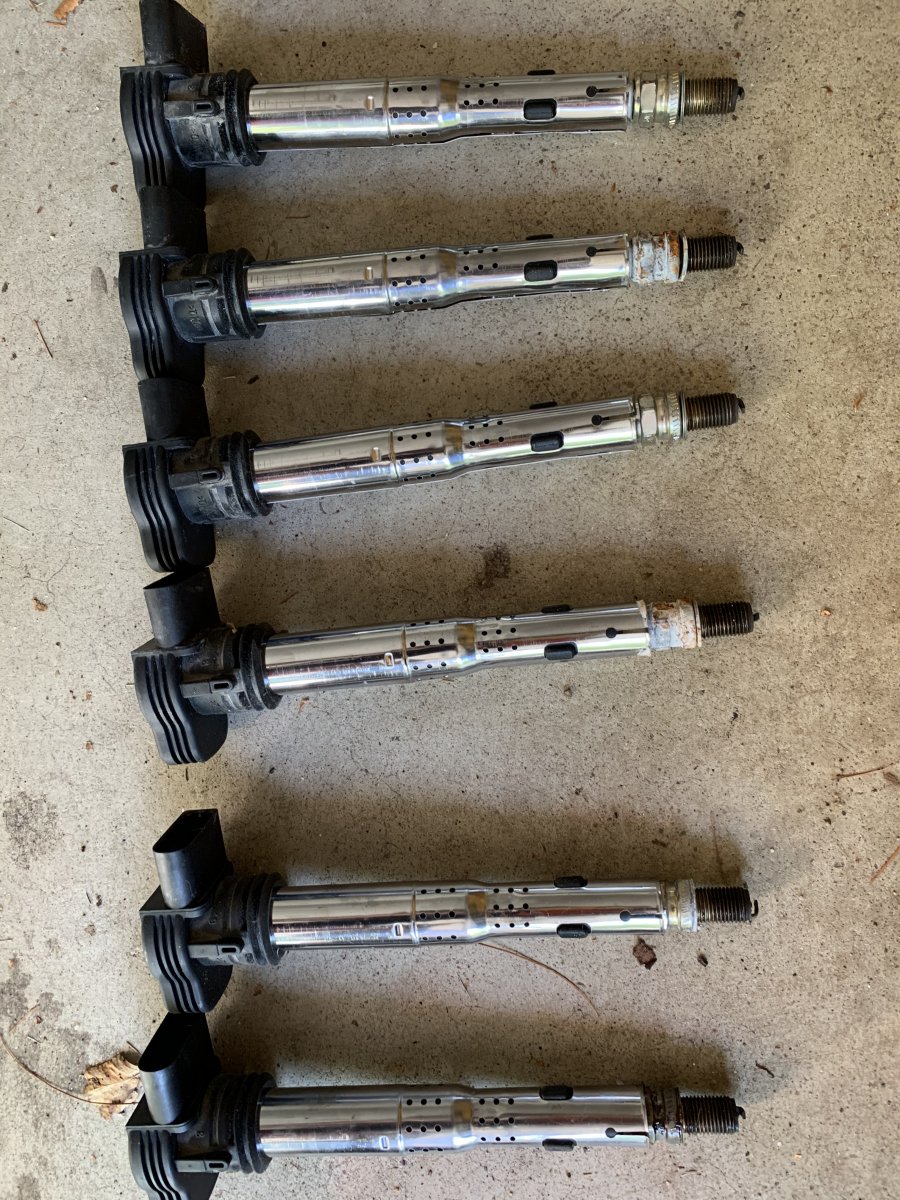

last pic is 6-12 plugs and COP. COP very clean, some corrosion on some of the plugs.
