72 Datsun 240z/Fairlady Z Restoration Build

Recommended Posts

hey guys,



a few weeks back i posted a photo of my new R8 spyder, and someone caught a glimpse of a 72 datsun project i was working on. so finally got a chance to upload all the photos off my phone and share some of this build with you so far. it's still FAR from being finished and will take some time. but hope you guys enjoy the process so far…



after months of looking for a project Z car, i finally found one in reno, nevada. car only had 2 owners, and the owner i bought it from owned it for 36 of the 42 years of the car's history. owner had done an exterior ONLY restoration a few years back.





here's the car arriving at my house:



1EAE17CC-1D55-4E62-B1F0-CFAC7E008B98_zps





458FD039-B4DF-441D-A082-38AC92138994_zps





1AC6739C-657E-4CBF-B902-60A6D8B4131F_zps





AA5CEC92-E829-4DA8-9792-C06CC0D0D65E_zps







i wanted to add 240ZG flares. while original OEM parts are hard to come by, these were accurate and exact reproductions from a small company in japan called marugen shoukai. the test fit already shows that it aligns to the body 97-98% spot on.



F26B22C1-9FDC-4BE5-8758-69766CB22C65_zps





B9A097A2-2C1B-4EDB-BC1E-9A2E09EE6AEF_zps















Share this post


Link to post
Share on other sites

interior tear down begins.



A0569FF6-8C8C-4BB9-8EC6-87FDBFDB7E42_zps





unfortunately we find some rust issue areas. not totally a surprise. there are "normal" or common problematic areas with the 240z. specially in the driver/passenger floor panel areas. and sure enough…



779A1B3B-2E15-4873-974A-4D6056426508_zps





once the interior was gutted, i wanted to start trimming away the fender to accommodate the new wider wheels that would be coming in for the ZG flares… we trimmed away the fender and started the process of folding the inner well against the fender to weld them closed.



9957CCC1-6F15-47A9-A5F3-04C12756CCF9_zps





DBD3D1A7-C5EF-44AA-8233-DFE03FB039D8_zps





0983938A-43B9-4267-9E5A-E8F3D82C4175_zps

Share this post


Link to post
Share on other sites

spent the better part of the last year "hunting" and tracking down NOS (new old stock) parts and OEM pieces to replace on the car. obviously i prefer OEM parts, but in SOME cases, reproduction parts are only options available. unlike ALL my other car projects, MAJORITY of the money spent on this project is going into stuff NO ONE will ever see or give credit for. but i know at the end of the day the car was done right… and that's all that's important to me… OH, and all the US 240z badging will be ditched for the japanese "FAIRLADY Z" badging.





8CC409AB-1B07-4C90-BFE2-43CE3BD2A56B_zps

Share this post


Link to post
Share on other sites

spent a little time back at the house removing all the sound deadening material and GUNK from 40+ years of build up in the car to prep for paint… here's my wife helping me out with some dry ice…





A08CC718-D207-4FEC-81C6-2A0F03B7E292_zps





found an OEM "Z" horn button versus the US "datsun" version:



639C1F6C-83EA-4FFC-B9B9-899CAA247F08_zps





finishing up the tear down for bodywork and paint prep:



63BD6198-1914-42B8-AD68-599C41BC2D01_zps





0F3A3FEB-8BC7-4457-AF1E-03ED7005536A_zps





676D42B0-F669-4087-8087-9DD0A7633B9C_zps





9DDF86EC-CB78-4B24-B6E3-FB2715E5C14F_zps





windows coming out…



2245C4D9-A7B5-457A-9929-B8A9D4D311AE_zps







Share this post


Link to post
Share on other sites

car getting picked up by my friend at Emergency Hookers to a friends house for bodywork and paint prep…



1E03EEE3-3793-4A71-ADFF-F68C8CDF51E0_zps





2654996E-4E70-4EF6-BB4E-82728DA59997_zps





home for the next few weeks as we prep the car:



C9B84EE3-F66C-4869-9502-605975734054_zps





dash, pedals, and steering all removed…





12FFDA8B-2318-4DFE-AD55-968E436C5C92_zps





86DFB7EB-4FC7-46E8-924A-37C61DDFCB52_zps





CCD383E9-4075-440C-BEFD-F5D8FDCE6F75_zps





90D60F4E-75DD-4E7E-93E0-6B5F0689F021_zps





undercarriage has been cleaned up at this point, and now you'll notice the fender wells being coated in fender liner spray to help give it a cleaned up look and project it against the elements:





5D1F4FD5-CAC8-4FC4-A037-3A3132077827_zps













Share this post


Link to post
Share on other sites

I had two Z cars when I was younger. I had a 260Z and a 280Z. God I loved those cars. I will have another one some day. Interested to see how this build turns out. Good luck with it.

Share this post


Link to post
Share on other sites

JDM fender mirrors being fitted:



08E33A21-FF47-483B-9C54-77B5A01002E1_zps





rear fenders have all been welded shut and now cleaned up for paint:



635669C3-DAF9-4629-8227-C27EE98836FA_zps





F1A170D5-7D9F-4F0F-B05A-6DEF2D627609_zps

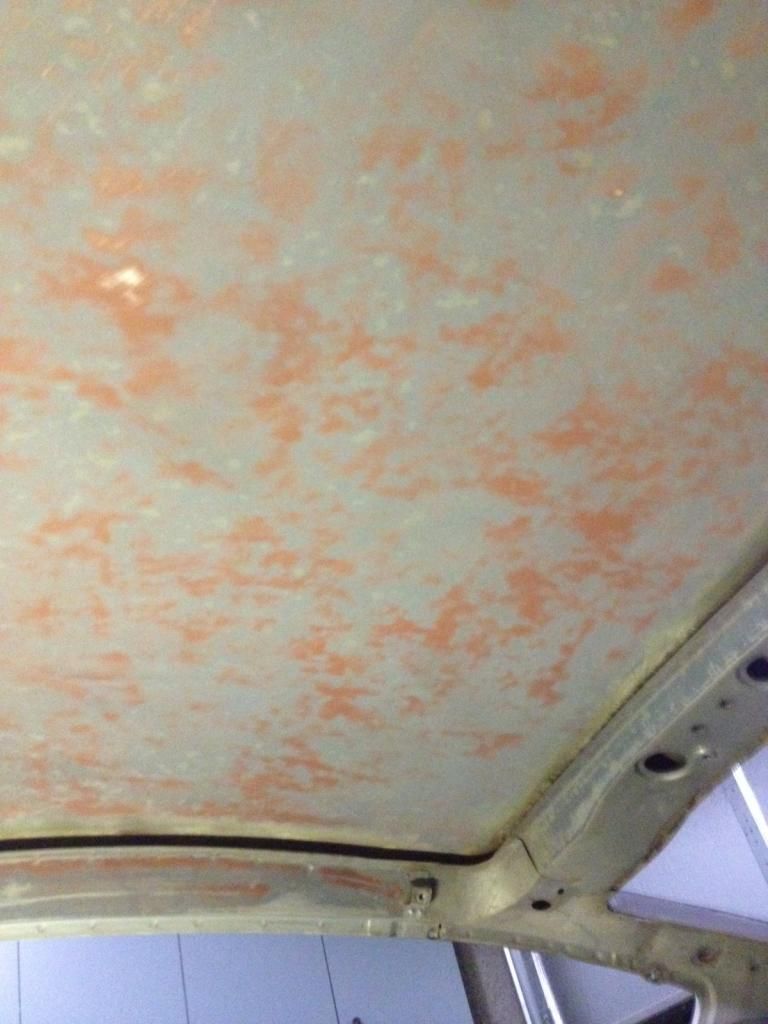

so much of the old school interior was simply held on with spray adhesive and vinyl. this makes for a headache trying to scrub all this crap off… here's a shot of the roof panel from the inside:



240D25CF-2D28-402A-A45E-FD4ECE8B7E5C_zps





ok… so here's some MINOR custom touches for my project Z. since i live in california (where is hardly ever rains), and i don't really plan on driving it IN the rain, i had the windshield wipers removed and the heavy motors (they weren't working anyways). with the wiper mechanism removed, i had the 2 holes where there wiper arms come out of the hood cowl shaved and removed. we cut metal pieces, welded them into place, and finished it off with a little body work.



A84CB1B1-25BA-4CA1-AFB0-9DCD0F685F58_zps





43206874-5EAB-4C56-940B-06E7AEF24196_zps



Share this post


Link to post
Share on other sites

engine bay getting sand blasted and prepped for paint…





62C970E9-5E84-4751-85D4-D4A1FD934367_zps





FBC2713F-A0FC-442C-B223-37D0420F8398_zps





E146687B-4665-4244-A808-932AB8AE0771_zps





F5E7ED33-3150-4BEF-B2AE-3E1FD0750C53_zps





interior all ready for paint…



086B03A7-010D-4E6B-B666-25BA330D1557_zps





57E40FD3-61A2-477E-AB5C-1146AAD76A60_zps





37B1C67C-ACB3-4FC2-9314-F8C9917F9BAB_zps





063769D7-8949-484A-9CAB-F54059637398_zps





again, the rust areas on the driver floor well. this was the biggest problematic area…



94FCDEA1-1ECC-4EDE-B321-6FE6DF75FFD0_zps





593AF989-0850-454C-90D6-372B8DD13404_zps





we cut away the rust areas, and dropped in a new piece of metal…



52F369AC-A65F-4061-A732-D91947F2B1A1_zps





BAA150AB-6AD4-4EE0-B853-DE3093E4253D_zps





we had to also shave and close up the holes from the US mirror mounting areas on the door…



58B5E698-FE12-42BF-8F40-BAE9CEA6C0EA_zps

Share this post


Link to post
Share on other sites

and it's now to paint! while the period correct white is a bit "off white"… i wanted to go with a PURE white… my friend has a custom white mix from house of kolor he calls "cocaine white" LOL….



paint goes down in the engine bay and interior first. (notice the black fender liner pops against the white)





62C5BC2A-EFC4-4BB0-B7A4-66499521390A_zps





5C4CB8F6-81CA-4AFB-A245-3E7E061E285A_zps





E042F50F-52AF-4A84-850B-ED1D3C71EE95_zps





now onto the exterior:



EFFEB710-CF36-46FC-AEF2-99F25E4A3276_zps







Share this post


Link to post
Share on other sites

cars now back at home after paint for the SLOW and tedious process of re-assembly. this will take some time as i have to repair, refinish, or find new replacement parts before it goes back on the car…



BA44E18B-2C25-44AF-9628-AA5FC7A1FDF0_zps





484E9530-D930-4FBC-9D05-7483AB4736CA_zps





E171EB8D-8B9D-4C07-B2E3-D94038DD0A72_zps





1B0B39AA-2488-4554-BBE5-1A0663E6AF63_zps





the US spec tail lights were ditched for these JDM specs (with amber lenses):



FA6BF0F0-F026-4E0A-9AC4-62343AF51BB9_zps





6D6165BE-47F8-4FA2-9165-34E4E17E8B02_zps



once again, DATSUN and 240z badging being ditched for the JDM "Fairlady Z" ones:



678963EE-02F3-415C-BEE0-09726C2A4B1A_zps





datsun hood emblem replaced with "Z" emblem:



A1420399-1472-4276-A277-D381D8467053_zps





details like newly powder coated hood hinges:



4D696526-ACF0-47BA-A6EA-1B6D1666E489_zps





more details… metal hardware freshly coated in new yellow zinc finish:



3AD12A01-1E31-4EAF-8708-50FA3A9CAA58_zps





0583A587-9248-47DF-9176-DF8F46EFF0F0_zps







Share this post


Link to post
Share on other sites

the ZG fender flares (along with the 432 spoiler and front air dam) will be painted in a satin/textured black… it'll resemble the OE "urethane/rubber" bumper texture…



here's a test spray:



44DA28B7-2B4A-4AC0-A584-8090A6BA68D9_zps





and now the ZG flares:



44440D57-31C8-4960-85AB-390D862DDDD0_zps





0365C783-22D3-4E50-94D9-29A2F9EED862_zps







Share this post


Link to post
Share on other sites

and that's ALL for now folks… the flares are going to be mounted on the car this week. up NEXT on the "TO DO" list is the motor/engine rebuild, and suspension work. wheels should be coming in from japan in about another 30 days. i'll update time to time as new things go on this car. hope you guys enjoyed so far…

Share this post


Link to post
Share on other sites

Wow, awesome build! :icon_thumleft: Really enjoyed this thread, looking forward to the finished outcome. My cousin had an old 280Z when I was a little kid and I loved that car. You have a great taste in cars and modding!





PS - "Emergency Hooker" may be THE best name for a towing company ever. :lol2: Love it.

Share this post


Link to post
Share on other sites
Sweet build! Is there an LSx small bock in it's future?



I pray not. While the LSx swap is popular, easy and gobs of power, it doesn't do this car right.



He needs to rebuild the engine, do some small updates, and go triple carbs on it. :icon_super:

Share this post


Link to post
Share on other sites
Were you towing it with a paramedic truck? :lol2:



Sweet build! Is there an LSx small bock in it's future?



Owner of Emergency Hookers bought a paramedic truck that was no longer being used, re-wrapped it in his "Emergency Hooker" brand and now serves as part of his towing fleet.



As for the engine... NO LS... keeping true to the JDM theme on this build. surprisingly the car has it's ORIGINAL motor (matching numbers), so i think we're just going to completely break, rebuild, and add mikuni triple carbs to the build. should be good for about 260-270 HP.

Share this post


Link to post
Share on other sites
I pray not. While the LSx swap is popular, easy and gobs of power, it doesn't do this car right.



He needs to rebuild the engine, do some small updates, and go triple carbs on it. :icon_super:





DANG.... just posted my reply... at least we're on the same wavelength about the vision of the project! :icon_thumleft:

Share this post


Link to post
Share on other sites
Wow, awesome build! :icon_thumleft: Really enjoyed this thread, looking forward to the finished outcome. My cousin had an old 280Z when I was a little kid and I loved that car. You have a great taste in cars and modding!





PS - "Emergency Hooker" may be THE best name for a towing company ever. :lol2: Love it.



i LOVE hearing people share their "stories" with the datsun's (240/280's)... it's a very nostalgic car... people all have great memories of the car in some capacity (ie: my uncle had one, that was my first sports car when i was your age, etc)... even the DMV inspection guy was an OLD Z fan... he literally pulled my car out of line and brought it up to the front to do the visual inspection cause he loved it so much!



and yes... EMERGENCY HOOKERS is quite a memorable name... he's actually one of the premier southern california tow companies. does great work IMO.



Share this post


Link to post
Share on other sites
DANG.... just posted my reply... at least we're on the same wavelength about the vision of the project! :icon_thumleft:



You've got good taste and vision on the build. Keep up the good work.



I'm just glad it's not going to be ruined.



It's more fun to drive a slow car fast, than a fast car slow. Enjoy it!
