Cross Reference Parts Guide For Diablo

I can name a few, if you need more info PM me, some of these may be a little incomplete due to lack of memory but I know that they work.



Fuel injectors, Accel



Oil filter, Napa, but Napa filters can be crossed referenced to advance auto or autozone



AC Compressor, 7 piston Sanden, swap the heads, and make sure it has the correct pully



Alternator, any brand cross referance to a bosch AL170X



Cap and Rotor, Jaguar 12 cylinder with with correct ignition



Coils, Jag.... same as above



Air filters, K & N, For Countach



Belts, just measure



PM me, some of the part numbers I would have to look up.

I am looking for a cross reference for the GT or GTR front turn signals. Any help would be appreciated. I have also help out a lambo dealer locate the rear reflectors on the roadster since they are no longer in production. Let me know if anyone needs that and I can help you out.

Regards

Kelly

Front outer axle boot for a 95 VT is a Porsche number is 964 349 29100. The boot from Napa is line code CVB and the part number is 686 1101.

Does anyone know if there is an alternate car with the ashtray for the 98, 99 Roadster? You can't get them from Lambo anylonger.



Thanks

Console light for Diablo 6.0 (between the 2 seats) is a Fiat part.

Will post part number and a pic.

Diablo O2 Sensors - These are for my 1994 2wd



Text on them reads (top to bottom):

OZA446-E2

KBA16693

NTK JAPAN





There is a plastic cover over the thread in this picture - it is just to protect it prior to fitting and just pulls straight off.







The connectors may need some dicking about to make them fit - I'll update on this once I've fitted them.









Brake Pads



Text reads:

Ferodo Racing

FCP399S

DS2000

094









They were machined (I think on the sides) to make them fit the ATE Calipers.

Update:





Those sensors are 100% correct. I fitted them to a 2WD car (not SV) and drove it this evening.



I can't believe the difference it has made!



The connectors are 100% correct for my car and the whole job was as simple as replacing a spark plug!





The old Bosch sensors had the follwoing written on them:







LSH6

BOSCH 12V

0 258 003 032

76211 Made in Germany (020)



Info from the bosch site: http://www.bosch.com.au/content/language1/download...



Original Sensor

0 258 003 032



Direct Fit Supercession

0 258 003 957



Universal Sensor

0 258 986 502



Number of Wires

3



Check Interval Kms

100,000

KEYS FOR DIABLO ... $3.50 at you local lock smith ILCO brand key made in USA "Fiat" Blank FT46 X152



Bryan



I can verify this. Just had two keys made.....$2.79 each! Works perfect!

Diablo roadster wheel bolts.



http://www.ezaccessory.com/Lug_Bolt_12mm_x...Shank_p/954.htm



Just in case the link goes away. They are 12mm x 1.5 conical seat 27mm shank.

I replaced my front brake lines.



I took the old ones to a place called Nevada House of Hose 702-399-1497. They made them in about 20 minutes and total cost for both with tax was $61.46.

I replaced my front brake lines.



I took the old ones to a place called Nevada House of Hose 702-399-1497. They made them in about 20 minutes and total cost for both with tax was $61.46.

steel braided?

steel braided?

No. The steel braided was only 20 bucks more. I didn't get them because I wouldn't be able to use the rubber positioning piece from the old ones.

No. The steel braided was only 20 bucks more. I didn't get them because I wouldn't be able to use the rubber positioning piece from the old ones.

Tire Rack has a steel braided that fits.



Less hose expansion under braking.



Better yet, upgrde the whole kit to Brembo. Its not cheap, but the stopping value is worth it.

Tire Rack has a steel braided that fits.



Less hose expansion under braking.



Better yet, upgrde the whole kit to Brembo. Its not cheap, but the stopping value is worth it.

After I find my SV wheels I will.

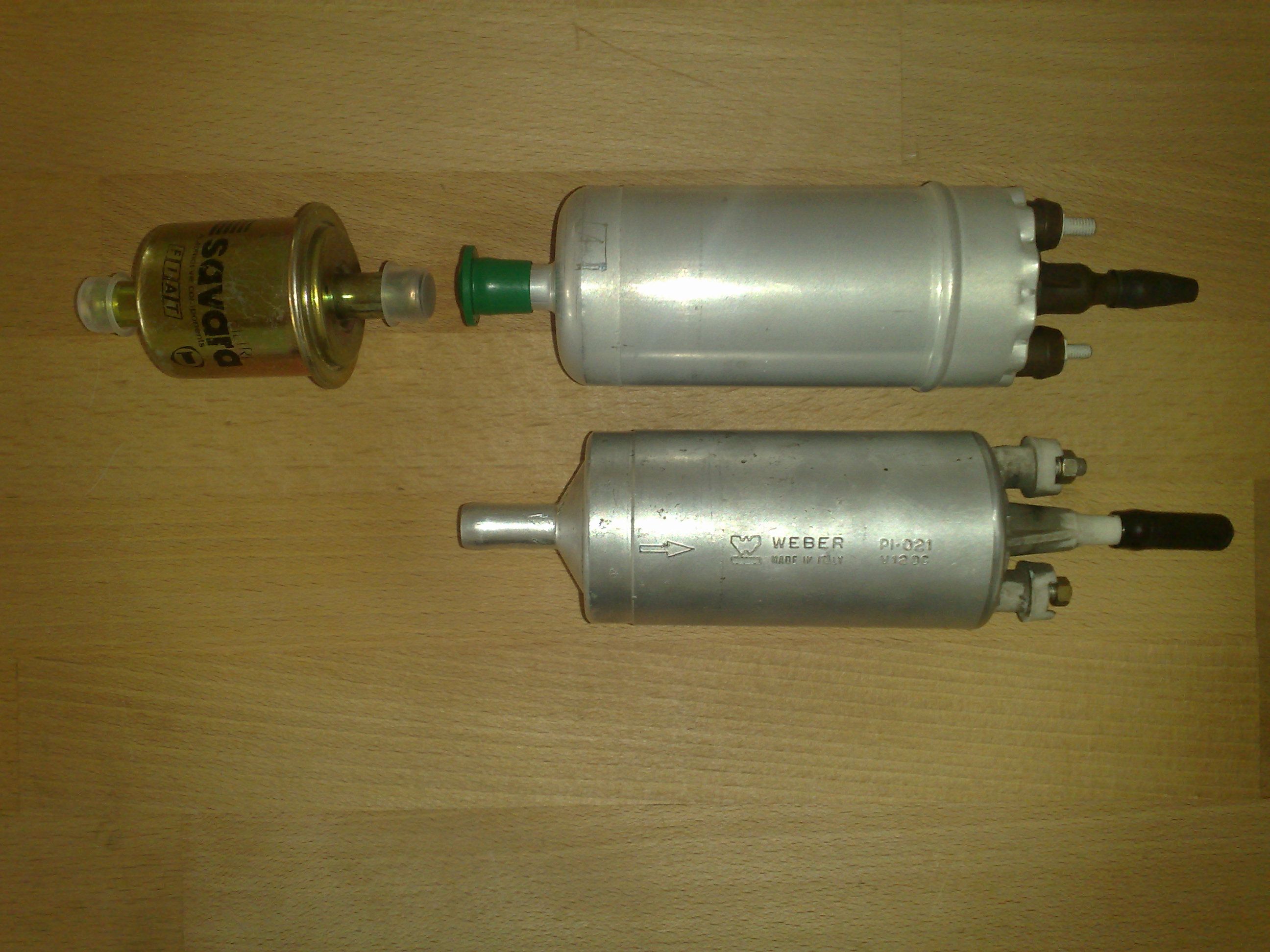

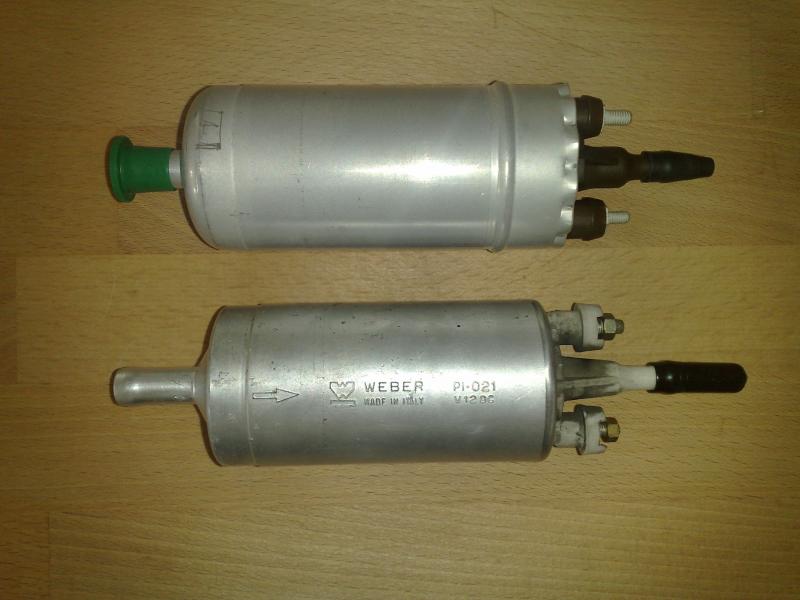

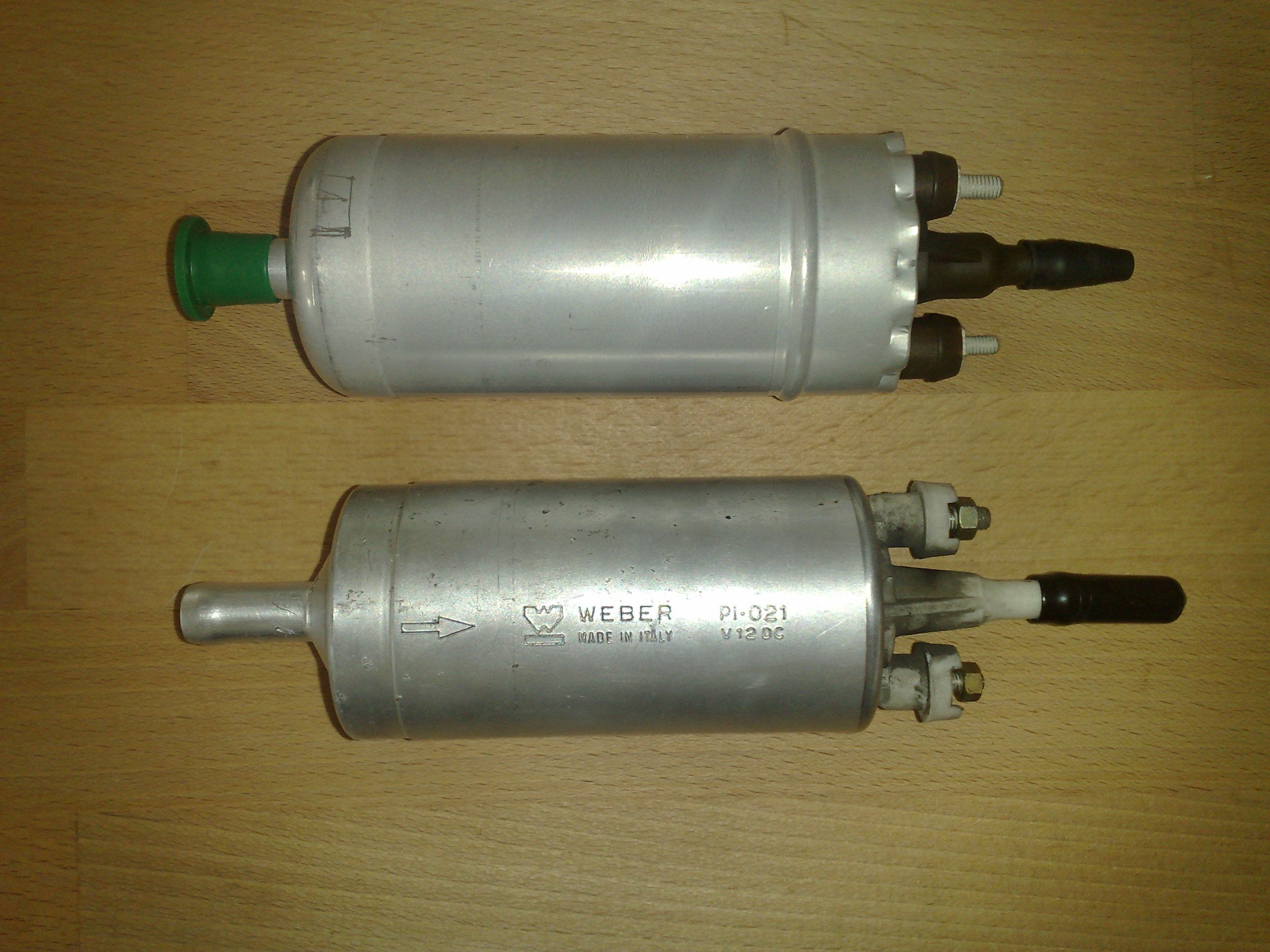

Fuel pump early Diablo: Weber PI-021 /

Bosch 580 464 070. BMW M5. E 28 3,4. 130 liters / hour ( 3 bar ) ( 43 psi ) One pump op to 210kw. 97$



Price 1 piece: Weber fuel pump 517$

Price 1 piece: Bosch fuel pump 97$



This is Europe price. I have not isstalled the fuel pump yet, so i will return when I have some facts

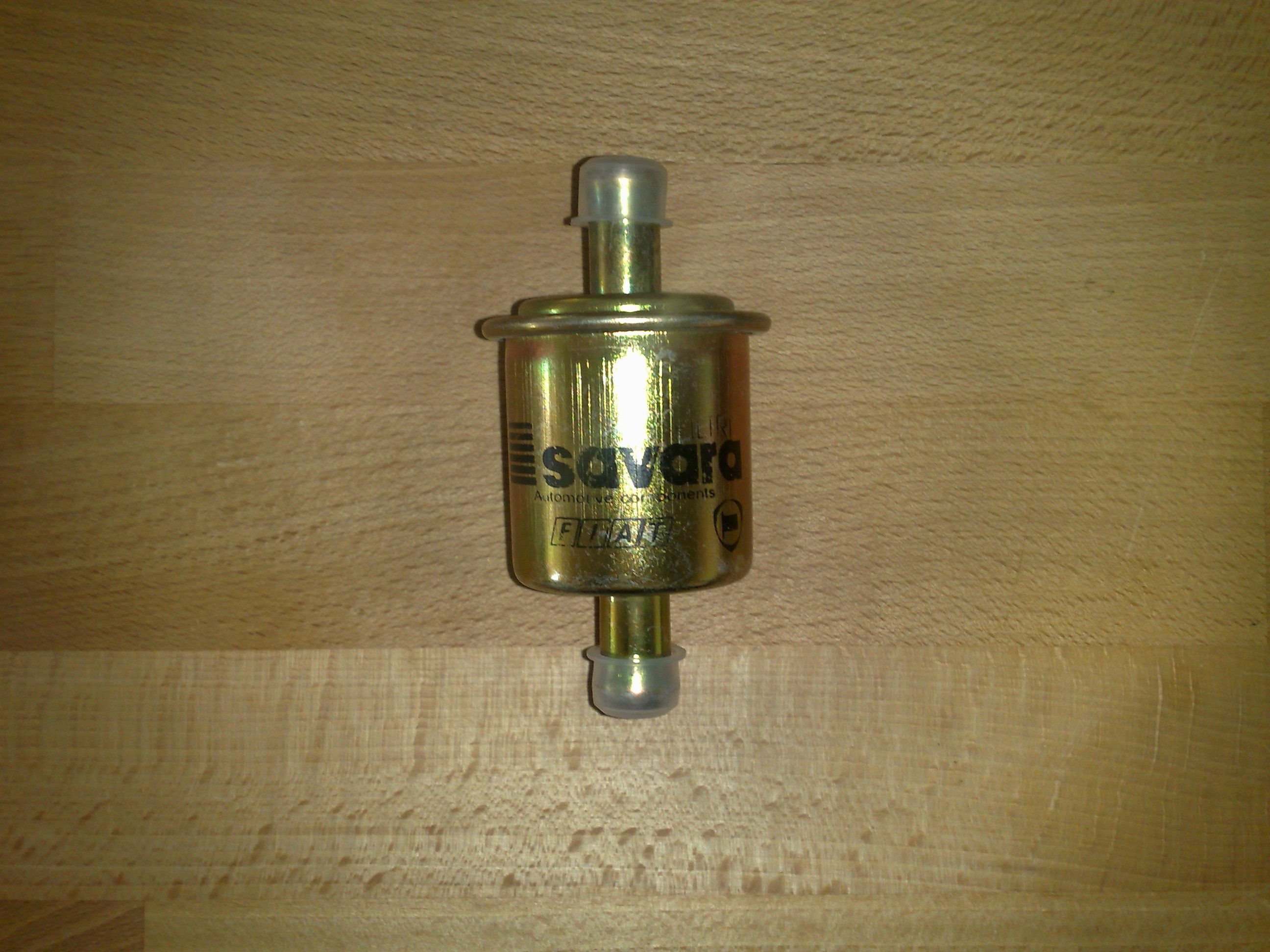

Fuel filter before fuel pump: "SAVARA Fiat 9.31.981.00. (7563164)

This is one of to I bought from Lamborghini at 28$ Maybe you can get it for less $ some where else.











Dear Lamborghinisti,

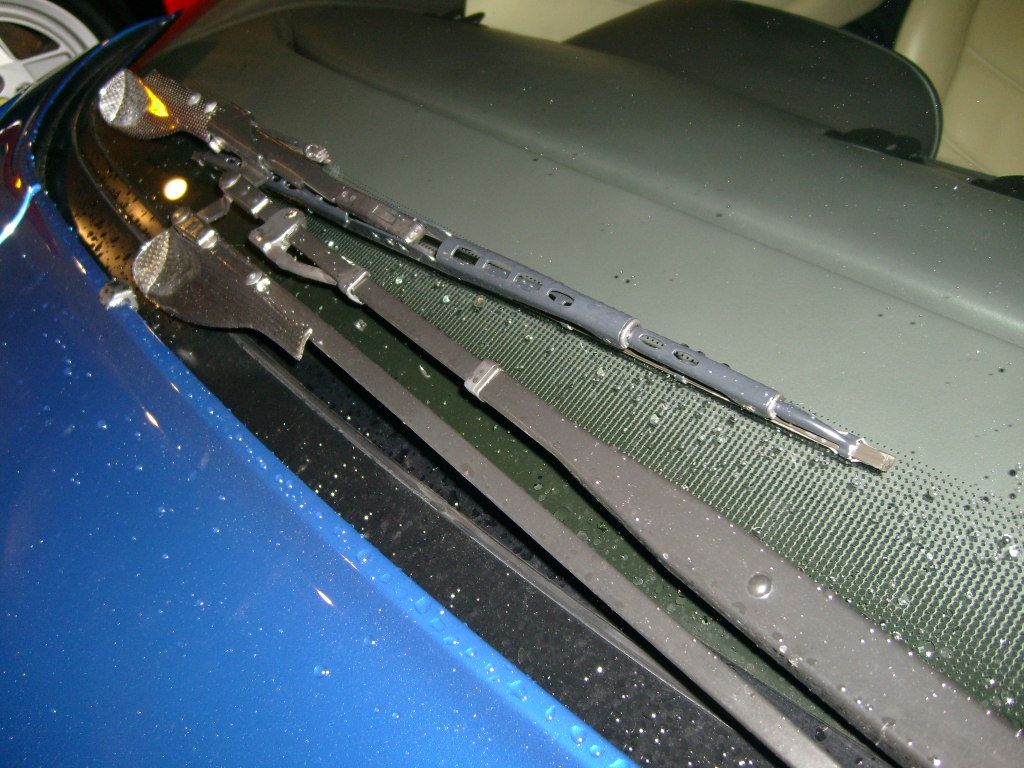

Wiper blades for Diablo



From Discount/Advance Autoparts



Trico Teflon blades



TRICO # 15-200 Refill #17-200



This is for a 20" blade....2" longer that OEM. It fits perfectly and does not sweep off the windshield. It will give you an extra inch of sweep at the bottom of the windshield above the dash.....great for fog on outside glass





TRICO # 15-130



13" blade....no refill.



This blade comes with an adapter. You pull off the plastic blade holder on the wiper arm. You then push and snap in the Trico adapter and then fit the blade as normal. It looks quite similar to the OEM plastic and since it's under the spoiler you don't see anything different....even from the inside of the car.



I've being trying to find blades that will match and fit FOREVER....no luck.



These blades match each other and with the teflon edge.....no chatter whatsoever. There is absolutely no blade noise on the sweep.



Very happy with the blades and local source



...and they match!





Shamile

Water thermostat for 98-99 SV, 99 Diablo, 99 Roadster, and Diablo 6.0:



NAPA Thermostat #148: $20. As opposed to Lambo's $450.



Made for BMWs and other European cars. Opens at the exact temperature spec as the Diablo (80 Celcius). About 1/16th of an inch wider, but still plenty of clearance for the rubber gasket. Drilled my own bleeder hole since the OEM one had a bleeder hole.



You can also cut your own gasket ($1.50) as opposed to buying a new Lambo gasket ($9). Appears to be the same material.

This may have been posted before so I apologize if it has. I replaced my bad Magneti Marelli coils with ones purchased through AutoZone, part # C1202 and cost me $54.99/ea.



95 Diablo VT

Thank you everyone for contributing to this thread. You have saved me time and cash!

Fiat Barchetta 94-99 front wing (fender) side indicators are a straight swap & look pretty much identical.



You can get them in clear with orange bulbs too on the UK Ebay site





Anyone know where to get a thermostat for a 91?

Front headlamps for early cars(2wd,VT SE30 and some SV and roadster) are a Hella unit identical to Corve++e C4, Astro van and Nissan King cab.



Nissan unit is 40Eur, from lambo = 120Eur

Brake Pads: Carbotech Bobcats. They're street pads that don't produce anywhere near the amount of brake dust as the OEMs. Good stopping power, smooth predictable braking.



http://www.ctbrakes.com/pads.asp?Make=Lamborghini



I got the 1521's.

Does anyone have a recent update suggestion on O2 sensors for early Diablo?

Fuel pump early Diablo: Weber PI-021 /

Bosch 580 464 070. BMW M5. E 28 3,4. 130 liters / hour ( 3 bar ) ( 43 psi ) One pump op to 210kw. 97$



Price 1 piece: Weber fuel pump 517$

Price 1 piece: Bosch fuel pump 97$



This is Europe price. I have not isstalled the fuel pump yet, so i will return when I have some facts







Fuel filter before fuel pump: "SAVARA Fiat 9.31.981.00. (7563164)

This is one of to I bought from Lamborghini at 28$ Maybe you can get it for less $ some where else.



Did the Bosch pumps work out?
