Cross Reference Parts Guide For Diablo

Did the Bosch pumps work out?



Yes

Yes



Thanks! I may do new pumps, filters, injector cleaning, etc so I just wanted to check

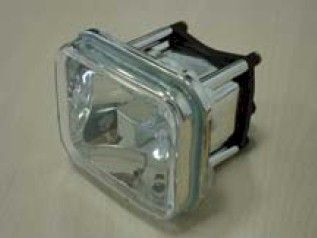

Any reference to the 4 front fog lights? Or anyone know of something similar?



A previous owner replaced those on my car with small projector type, but Id like the old style back.

6329688 & 6329689 New OEM from the factory. Be about $1000.00 for all four together.

Thanks, but that's why I asked for a cross reference or something similar $1000 for lights is just madness!

Anyone know where to get a thermostat for a 91?



Hi,



Just been wondering about this myself as I plan on doing a coolant change along with new thermostat at some point, so was looking to stock the parts now in preparation.



I noticed on eurospares website that they list the thermostat for 1991, as the same for 2001 6.0 cars, so if this is correct, then the nappa part that member "Fivecar" mentioned should work.











e-brake / handbrake pads are Brembo part number 07.5925.10



but I am struggling to find anywhere that sells them !



same as Murcielago and LP640

e-brake / handbrake pads are Brembo part number 07.5925.10



but I am struggling to find anywhere that sells them !



same as Murcielago and LP640



I believe they are the same as Dodge Viper 2002 - will check and confirm.

Source of Keys...



http://www.supremeplumb.com/cgi-bin/house/...Transponder.txt



seem to have every previous Fiat style key available.



blanks seem very cheap, but postage is a little expensive.

02 Sensors on an 01 6.0 - Bosch # 0258003032



I spent some time searching for Bosch 0.258.003032 and everything seems to now point toward Bosch 13032 ... including THIS thread.



Thanks to Glen at http://www.exoticwholesaleparts.com/ for hooking me up with an amazing deal!

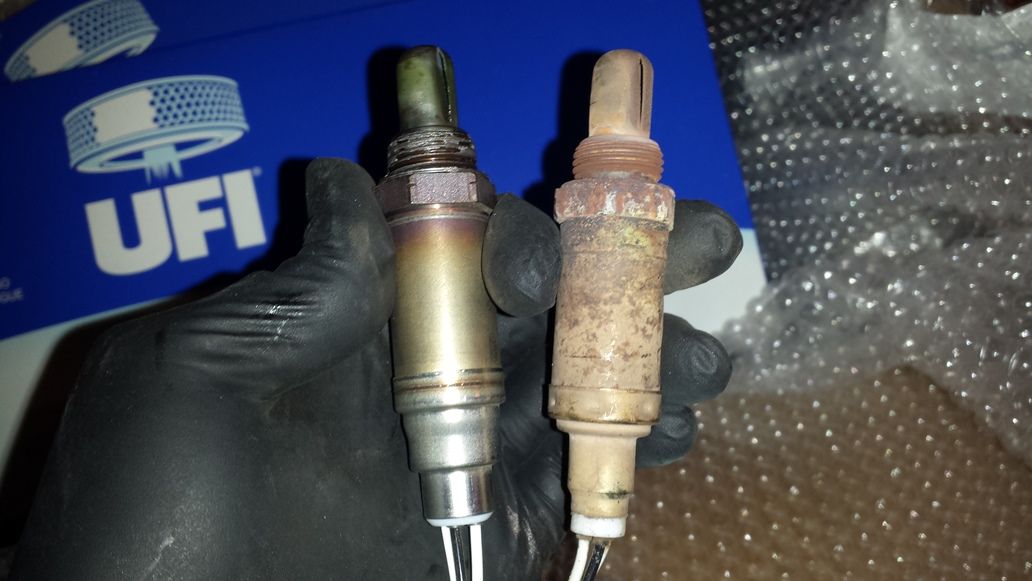

Here is what came out of my Diablo 6.0 and the replacement Bosch 13032.



I haven't seen this posted, so to make sure...

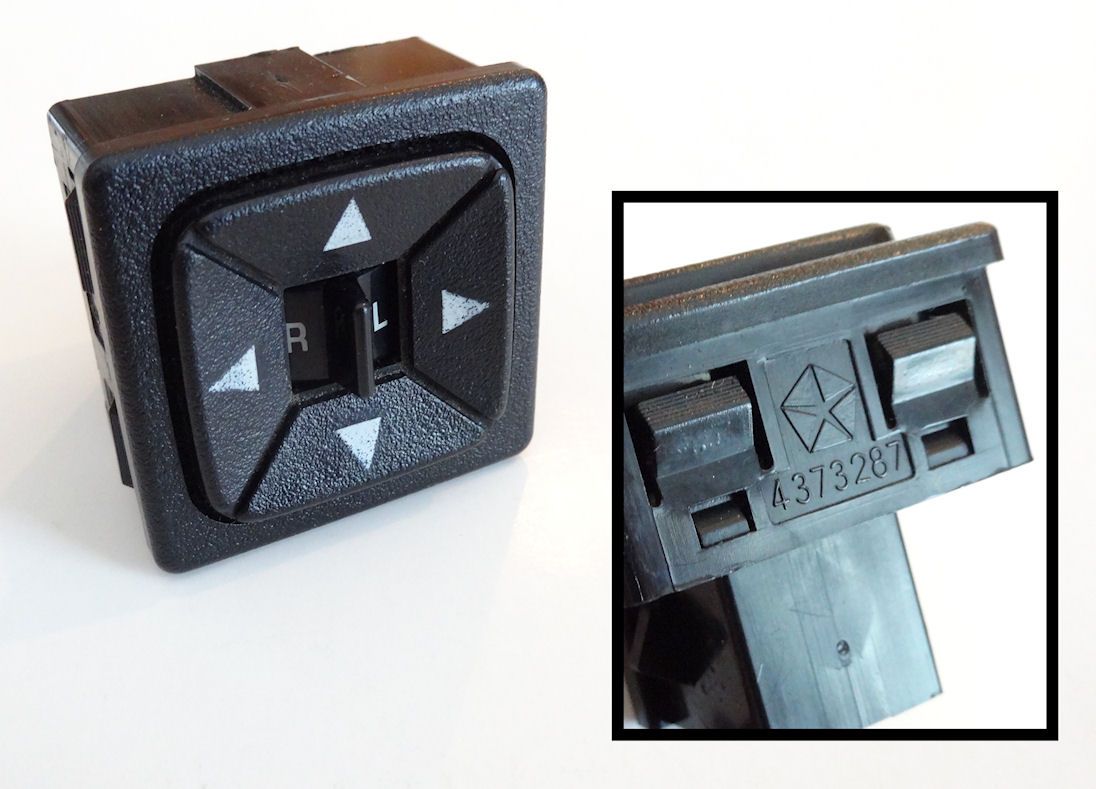

Door window mirror control switch is a Chrysler part, # 4373287. ~$20 vs. $65.



Good find! I am just finishing up the Murcie struts on my 91 and actually popped those out but didn't notice the Chrysler sign.

Hello

I read somewhere that the dome light on 94 diablo vts is a fiat part anyone have the fiat part number ?! The plastic cover mine Is miss and of it's just a cheap fiat part rather just buy the whole thing and replace it thanks!!!!!

If your model is the one with, 1 light in the roof, rather than 2 behind driver & passenger, then it's about $60 new from your dealer.



Have you a photo by any chance? Would be interested to see if I can find the fiat part.







Hello

I read somewhere that the dome light on 94 diablo vts is a fiat part anyone have the fiat part number ?! The plastic cover mine Is miss and of it's just a cheap fiat part rather just buy the whole thing and replace it thanks!!!!!





Hello there

I was actually browsing the macarbon site and saw this part which caught my eye bc I have been looking around for a new done light but saw it was NLA on bullstuff... And if you read the description it mentions that it is a fiat dome light



http://www.macarbon.com/index.php?page=sho...147&lang=en

QUOTE (Davo456 @ Jan 6 2014, 12:53 PM) *

e-brake / handbrake pads are Brembo part number 07.5925.10



but I am struggling to find anywhere that sells them !



same as Murcielago and LP640



I believe they are the same as Dodge Viper 2002 - will check and confirm.



EBC DP1719 £43.30 including delivery.

Fit Diablo (all models), Murcielago standard and LP640, Gallardo's from 2003, Dodge Viper, Ferrari 355, 360, Scuderia



confirmed - fitted today.

Any one know about similar/matching after market Radiators for the Diablo.....



The Diablo Radiators are made by Blackstone but cant really tell the model #. Any info is greatly appreciated. I am in need for the driver side Radiator





Thanks

CCIE





Anyone have details on fuel pressure regulators for 5.7 Diablos. I know a couple had used Aeromotive but I don't know what model.

Anyone have details on fuel pressure regulators for 5.7 Diablos. I know a couple had used Aeromotive but I don't know what model.



According to the Jan 1993 workshop manual the FPRs are return style calibrated at 2.5 bar (36psi)

I'm sure any universal EFI adjustable (30-70 psi) aeromotive bypass regulator will work after adjusting to 36 psi. You can install a pressure gauge in the reg. to adjust to the proper pressure.



I don't have them on my diablo but I used them before on a stand alone fuel system to tune a nitrous system.



Cheers

Thank you. That's the one I was looking at. I'm pretty sure the issue I've been having lately is because my injector grounding wires aren't fully grounded. But my regulators are pretty much the only thing in the engine area that hasn't been refurbished or replaced. If I do them, I will post back with results and details. Since I have aftermarket exhaust too, I'm guessing I could probably be running a little more pressure?

Any of you guys know what size, inner and outer diameter, the fuel hose is between the regulators and rails? I got the new regulators and i'm trying to figure out what adapters I need. Thought i'd check before trying to figure out it and buying extra stuff.

Any of you guys know what size, inner and outer diameter, the fuel hose is between the regulators and rails? I got the new regulators and i'm trying to figure out what adapters I need. Thought i'd check before trying to figure out it and buying extra stuff.

Chipster, the "od" of the OEM fuel hose between the rail and regulators on my '93 looks to be about 0.54 inches as measured with dial calipers. Can't give you a measurement of the "id" as the OEM hose clamps aren't a worm gear type and easily removable; they are double-eared, crimp on style and will have to be cut off. I would assume the id to be around 0.375 inches, as that's a standard size for fuel lines.

Much appreciated. I thought it was 3/8" but wanted to double check.

Chipster, the "od" of the OEM fuel hose between the rail and regulators on my '93 looks to be about 0.54 inches as measured with dial calipers. Can't give you a measurement of the "id" as the OEM hose clamps aren't a worm gear type and easily removable; they are double-eared, crimp on style and will have to be cut off. I would assume the id to be around 0.375 inches, as that's a standard size for fuel lines.

Ok, so curiosity got the better of me. I cut the hose clamp off at the regulator end and the "id" of the OEM fuel line hose is more like 5/16". A 3/8" "id" line would probably work and clamp down ok, but 5/16" will be more snug on the barb fitting of the regulator.

Ok, so curiosity got the better of me. I cut the hose clamp off at the regulator end and the "id" of the OEM fuel line hose is more like 5/16". A 3/8" "id" line would probably work and clamp down ok, but 5/16" will be more snug on the barb fitting of the regulator.



Thanks. Maybe I will order those too just in case.
